Diamond Grinding vs. Shot Blasting: Achieving the Correct Surface Profile (CSP)

If you ask any flooring contractor why a resin floor failed, they likely won't blame the paint. They will blame the prep.

In our experience, over 90% of coating failures - peeling, bubbling, and delamination - are caused by poor concrete floor preparation. You can buy the most expensive Epoxy in the world, but if you apply it to a smooth, dusty, or weak surface, it will lift within months.

The goal of preparation is to achieve the correct Concrete Surface Profile (CSP). To get there, you generally have two industrial options: Diamond Grinding or Shot Blasting.

But which one do you need? This guide compares the two methods to help you avoid a costly disaster.

The Enemy: What is "Laitance"?

Before choosing a machine, you need to understand what you are removing.

When new concrete is poured, the heavy aggregate sinks to the bottom, and a weak, milky layer of cement and water rises to the top. This is called laitance.

• The Trap: Laitance looks solid, but it is brittle. If you paint over it, the resin sticks to the laitance, and the laitance snaps off the concrete.

• The Solution: You must mechanically remove this top 1-2mm layer to expose the strong aggregate underneath.

See our blog on Laitance for a more in-depth explanation of what laitance

Method 1: Diamond Grinding

The "Sandpaper" Approach

Diamond grinding uses horizontally rotating discs loaded with diamond-tipped segments. It acts like an aggressive sander for concrete. It scratches the surface, removes surface contaminants, and levels out minor imperfections.

• CSP Achieved: Level 1-2 (Smooth to Fine Sandpaper).

• Best For:

• Thin Mil Coatings: If you are applying a standard Polyurethane or Epoxy floor paint, grinding is usually preferred. It leaves a smoother profile that thin paints can hide.

• Removing Glue: Excellent for grinding off old carpet adhesive or tile mastic.

• Levelling: Essential if you need to flatten minor high spots or trip hazards.

The "Pro" Warning:

Diamond grinding can sometimes "polish" the concrete if you use the wrong grit (too fine). You aren't trying to make it shiny; you are trying to make it scratchy. Always check your floor grinder tooling matches the hardness of your concrete.

Method 2: Shot Blasting

The "Bombardment" Approach

Shot blasting is a much more aggressive process. A machine fires thousands of tiny steel balls (shot) at the floor at high velocity. The shot hits the concrete, blasts away the surface, and bounces back into the machine to be recycled.

• CSP Achieved: Level 3-5+ (Rough Texture)

• Best For:

• Thick Systems: Essential for heavy-duty toppings, or mortar repairs thicker than 2-3mm.

• Heavy Contamination: If the concrete is heavily oil-stained, shot blasting fractures the surface deeply enough to remove it.

• Speed: It is incredibly fast for large open warehouses.

The "Pro" Warning:

Shot blasting is risky for thin coatings. It creates a very rough texture. If you apply a standard roller-coat of epoxy over a shot-blasted floor, the texture will show through (looking like the surface of the moon).

It also carries the risk of "Tiger Striping" - visible lines where the machine overlapping passes didn't match perfectly.

The Selection Guide: Which Do You Need?

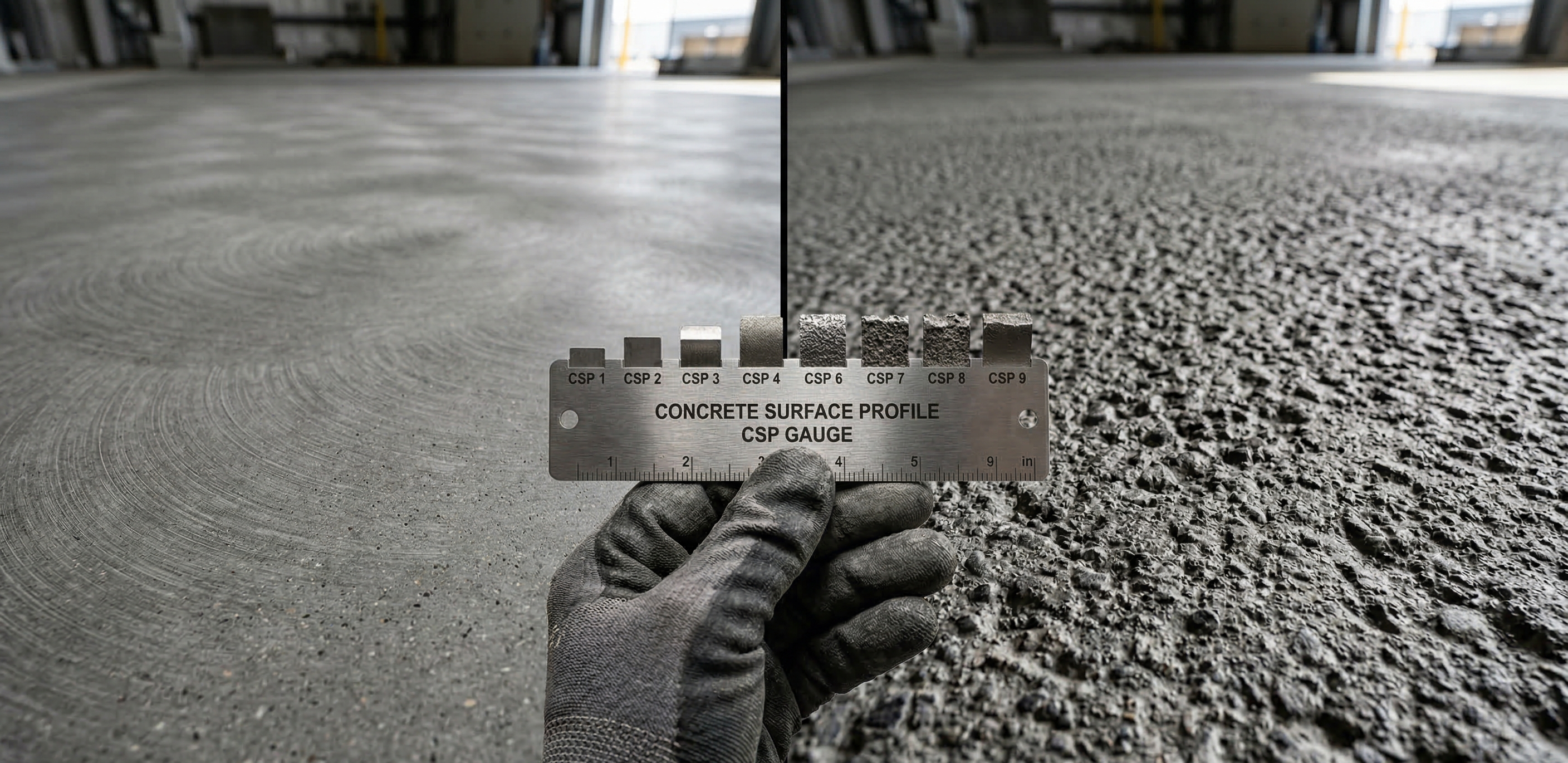

Choosing between Diamond Grinding vs Shot Blasting comes down to the thickness of the system you are installing.

Conclusion

There is no "better" method, only the right method for the coating you have chosen.

For most of our customers applying High Build Floor Paints, Diamond Grinding is the sweet spot. It opens the pores of the concrete enough for the primer to penetrate, without creating a cratered surface that eats up gallons of extra paint.

Don't skip the test. Before you start painting, pour a cup of water on your prepped floor. If it beads up, you haven't ground enough. If it soaks in and turns the concrete dark, you are ready to prime.
